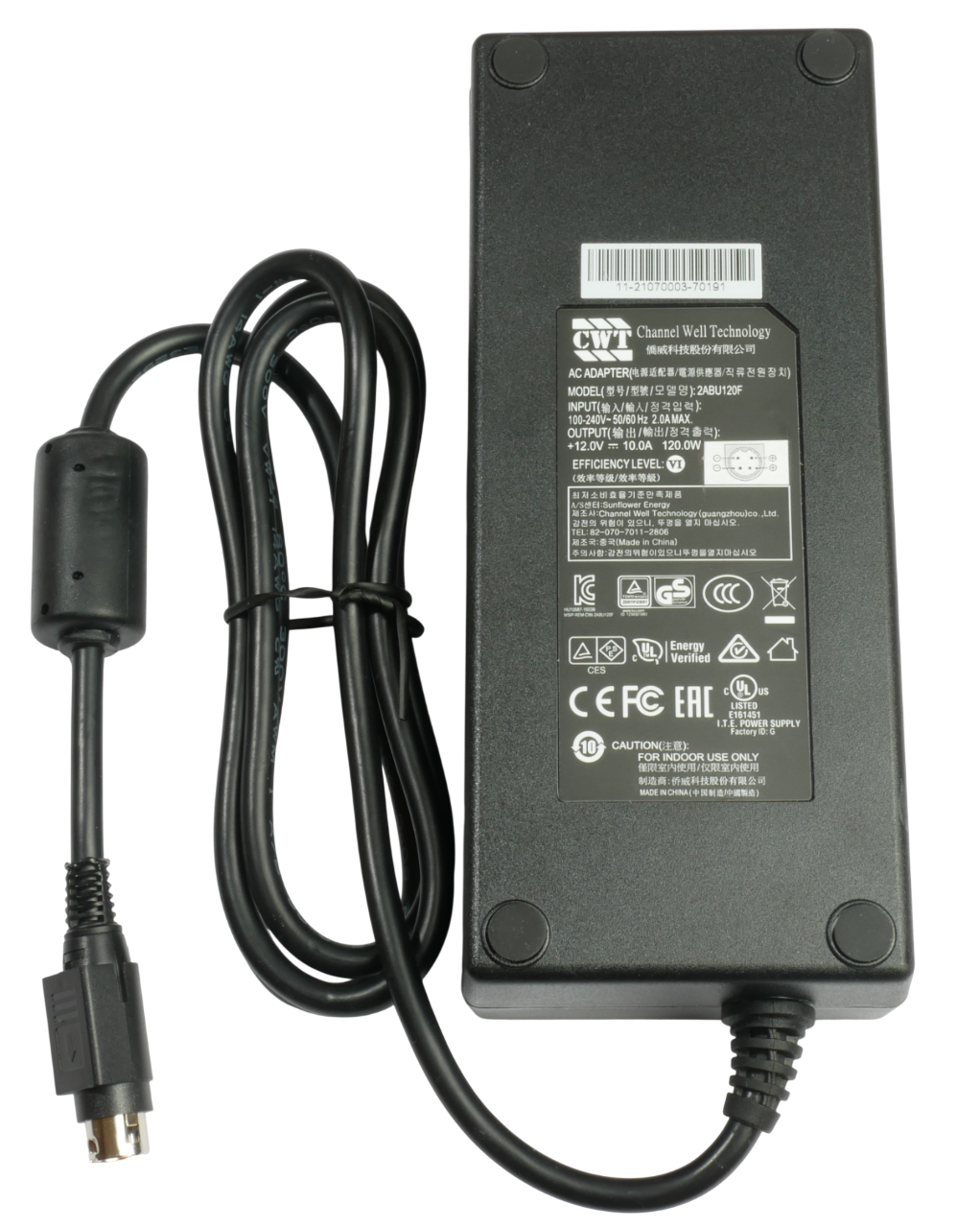

Genuine CWT 12V 10A 120W AC Adapter with 4-Pin Output Plug (Pin2 & Pin4 Positive Poles)

Description

This is a general purpose, fan-less, switch mode, 12V 10A 120W AC adapter manufactured by Channel Well Technology (CWT). It can replace the models KPS120012-VI and CAD120121

Its output current (max 10A) is dominated by the connected device, in other words, the output current is drained by the connected device rather than forced by this adapter. If your device has specified a max power consumption rather than max current consumption, the maximum current can be calculated as the result of max power consumption divided by 12, that is Current (A) = Power(W)/Voltage(V).

This product is NOT suitable for any network attached storage (NAS) devices, if you need a 12V AC adapter for a NAS, please click here

More information:

Output Plug: 4-Pin DIN, Pin2 & Pin4 are positive poles, Pin1 & Pin3 are negative poles (Not suitable for any NAS devices).

Output Cord Length: 1.2 Meters

Body Dimension: 156mm x 63mm x 32.1mm  (+/- 1mm tolerance)

Accessories required:  IEC C13 power cord (sold separately, Click here to see the price)

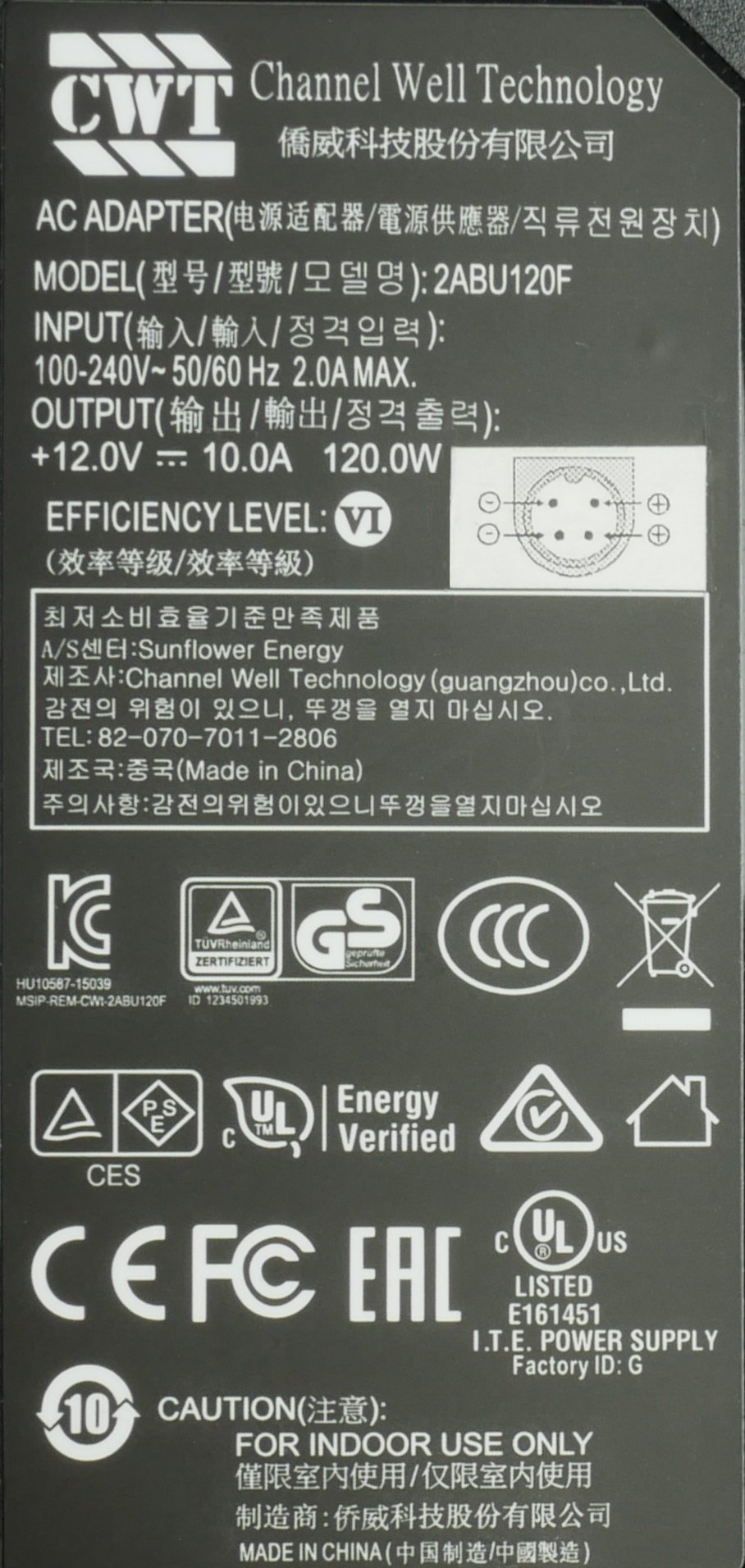

Approval Agency: UKCA, CCC, CE, UL, FCC, EAC etc.

Please email sales@hunterfield.co.uk for any questions.
