Genuine CWT 24V 5A 120W 4-Pin AC Adapter For CYP 4×4 and CYP 8×8 HDMI HDBaseT Matrix Switchers

Description

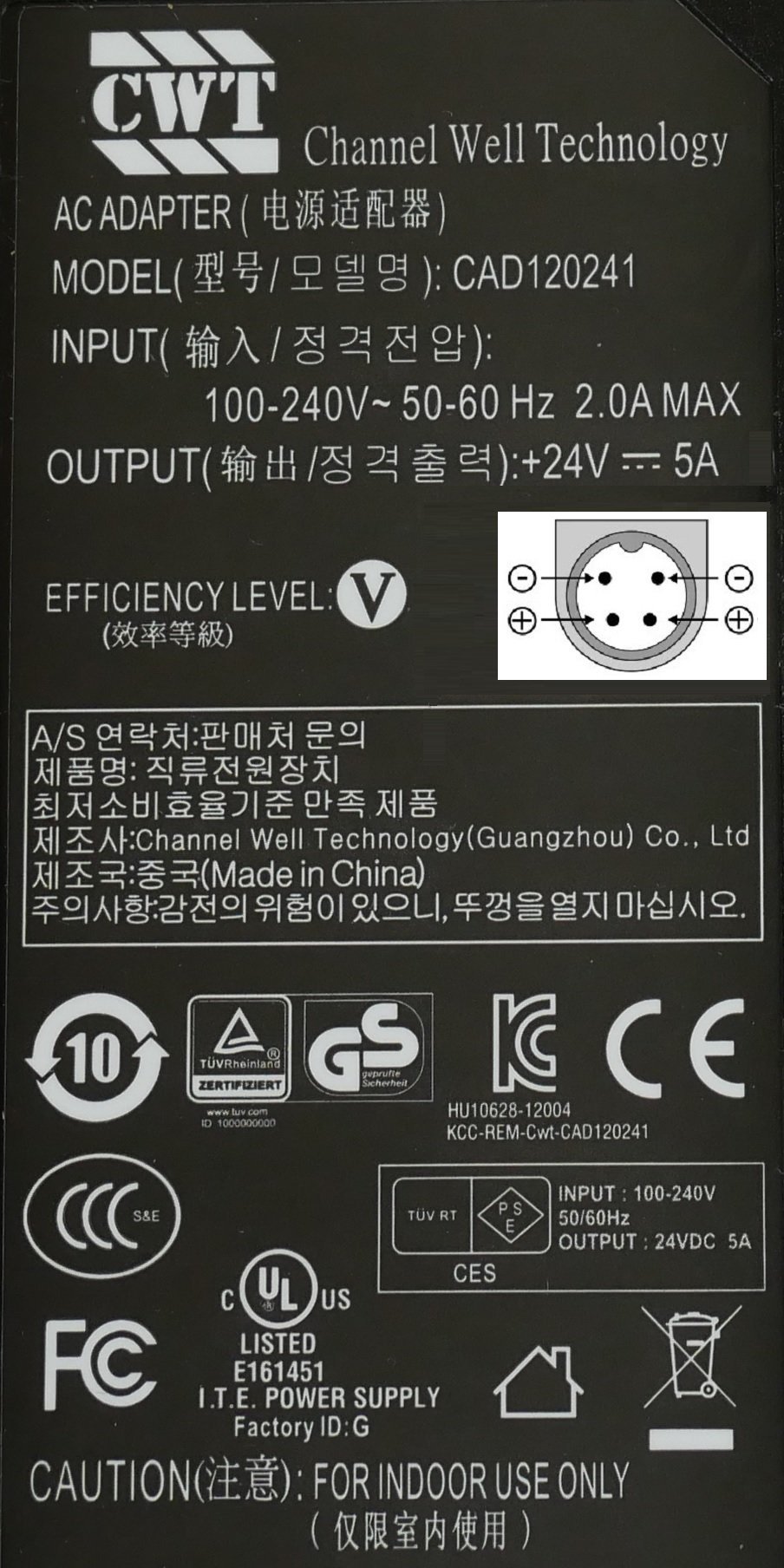

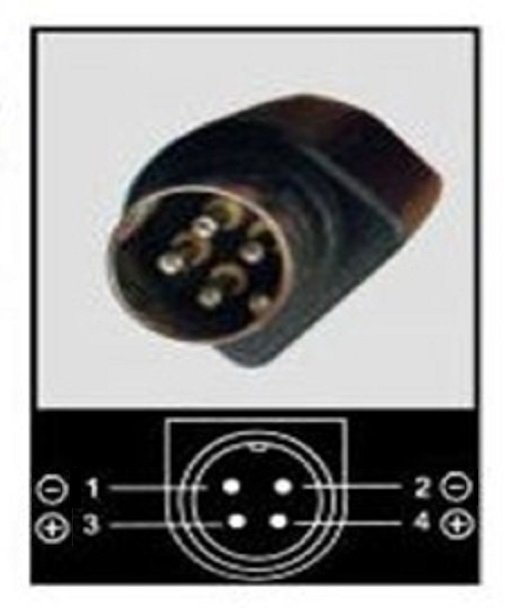

Genuine 24V 5A 120W 4-Pin general purpose AC Adapter, fanless, switch mode. Suitable for CYP 4×4 and CYP 8×8 HDMI HDBaseT Matrix Switchers. Manufactured by Channel Well Technology (CWT). This AC adapter is suitable for any device requiring a 24V power supply and consuming maximum 120W power, and requiring a 4-Pin DIN output plug with pin polarity configuration of Pin3&4 positive poles and Pin1&2 negative poles (see the product label for the details).

This 24V 5A 120W 4-Pin AC adapter is suitable for CYP 4×4 and CYP 8×8 HDMI HDBaseT Matrix Switchers, e.g. models: OR-44U-4K22, PU-8H8HBTPL

The output current (max 5A) of this 24V 5A 120W 4-Pin AC adapter is dominated by the connected device, in other words, the output current is drained by the connected device rather than forced by this adapter. If your device has specified a max power consumption rather than max current consumption, the maximum current can be calculated as the result of max power consumption divided by 24, that is Current (A) = Power(W)/Voltage(V).

Please email sales@hunterfield.co.uk for any questions.
