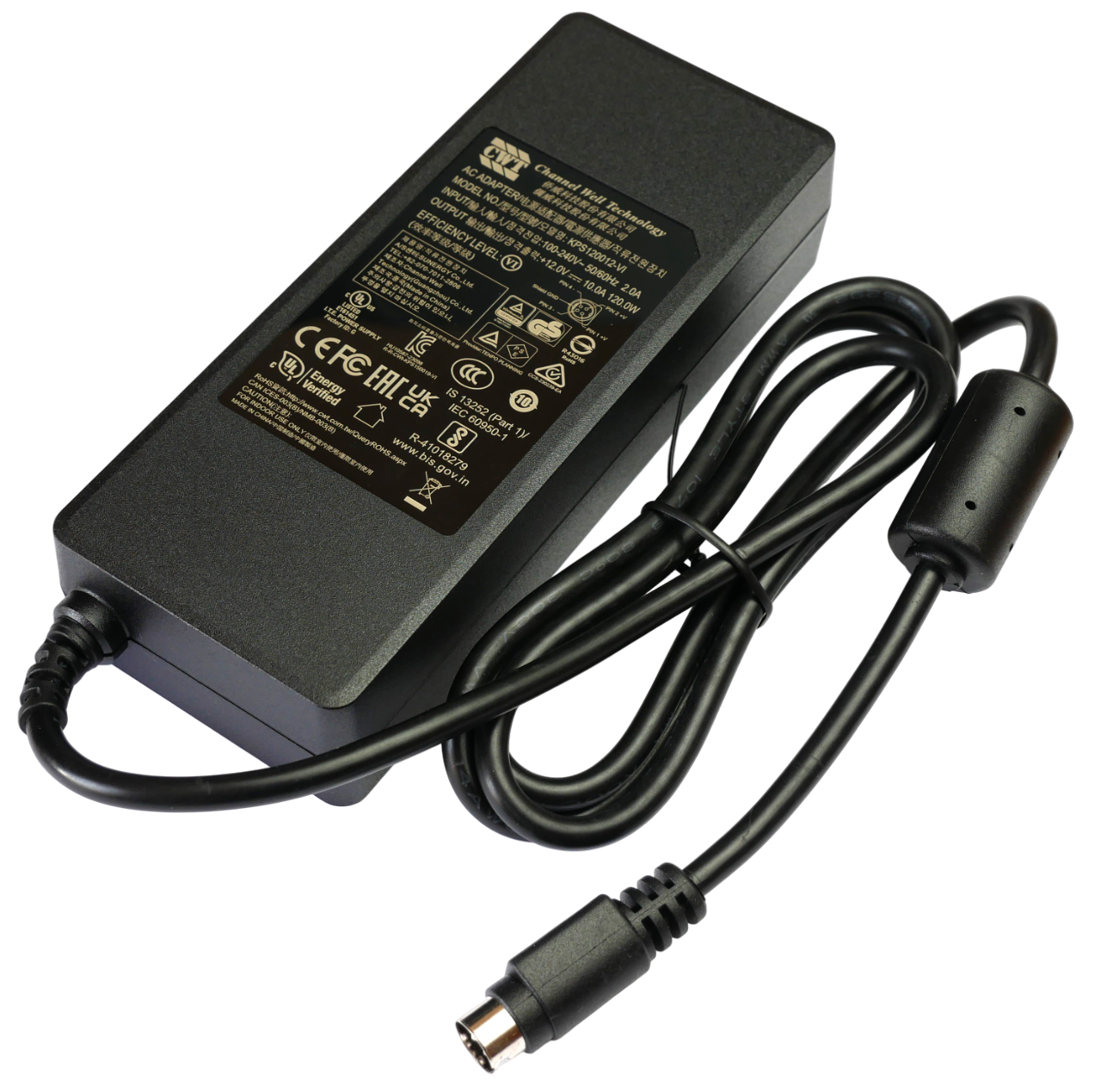

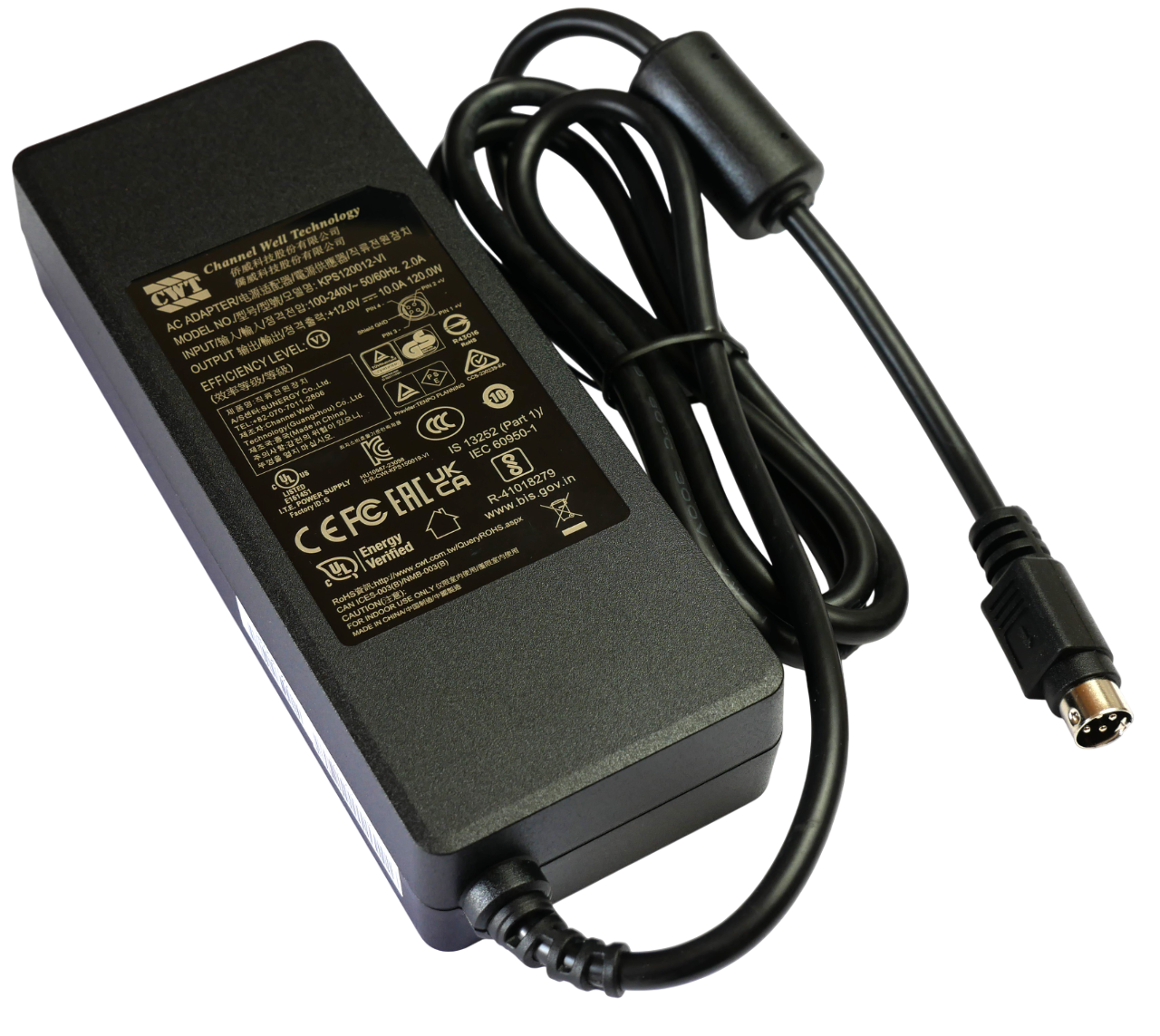

Genuine CWT 120W 12V 10A 4-Pin AC Adapter For QNAP, Synology DiskStation, Netgear NASs and Other Devices, Model KPS120012-VI

Description

This is a general purpose, fan-less, switch mode, genuine 12V 10A 4-Pin AC Adapter For QNAP, Synology DiskStation, Netgear NASs and Other Devices. Manufactured by Channel Well Technology (CWT). This product can replace the old CWT 12V 10A 120W 4-Pin AC adapter models of 2ABU120F and CAD120121

This 12V 10A 4-Pin AC Adapter is suitable for 12V Network Attached Storage (NAS) devices requiring a 4-Pin power input plug, such as (this is not an exhaustive list, please email sales@hunterfield.co.uk for any questions):

• QNAP TS-409, TS-410, TS-412, TS412, TS-419P+, TS-419P II, TS421, and many more models.
• Synology DiskStation CS407, DS214+, DS409, DS409+, DS410, DS410J, DS411, DS411+II, DS412, DS412+, DS413, DS414, DS415+, DS416, DS416+, DS716+, DS916, DS918, and many more models.
• Netgear NAS RN10400.
• This 12V 10A 4-Pin AC Adapter can replace 12V 7.5A and 12V 8.33A 4-Pin type AC adapters, e.g. P/N 332-10581-01 and 332-10363-02.

Its output current (max 10A) is dominated by the connected device, in other words, the output current is drained by the connected device rather than forced by this adapter. If your device has specified a max power consumption rather than max current consumption, the maximum current can be calculated as the result of max power consumption divided by 12, that is Current (A) = Power(W)/Voltage(V).

More information:

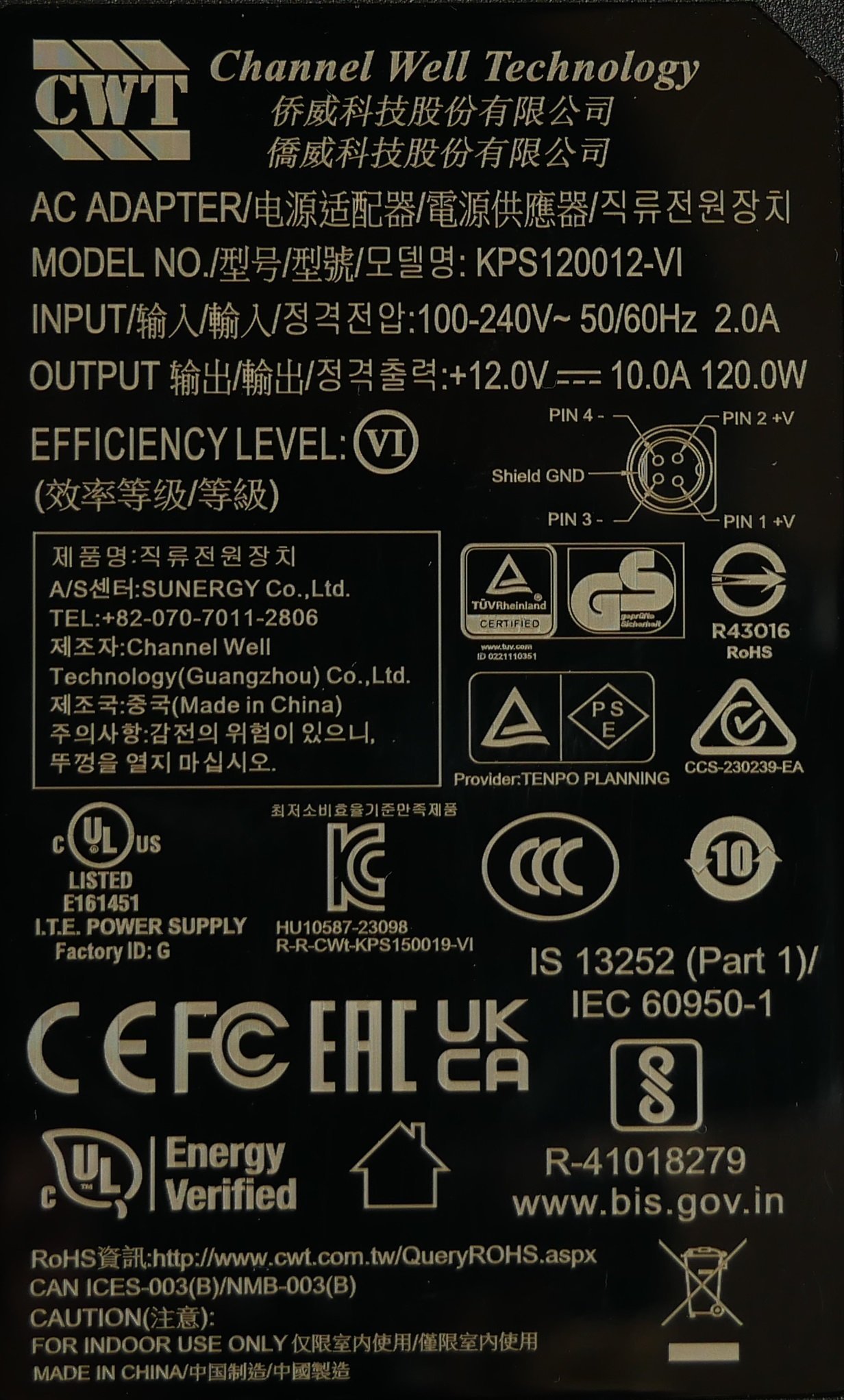

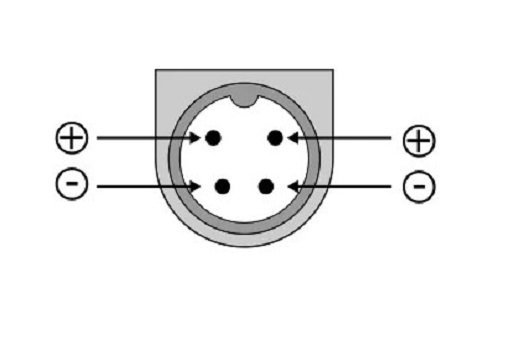

Output Plug: 4-Pin DIN, Pin1 & Pin2 are positive poles, Pin3 & Pin4 are negative poles.

Output Cord Length: 1.2 Meters

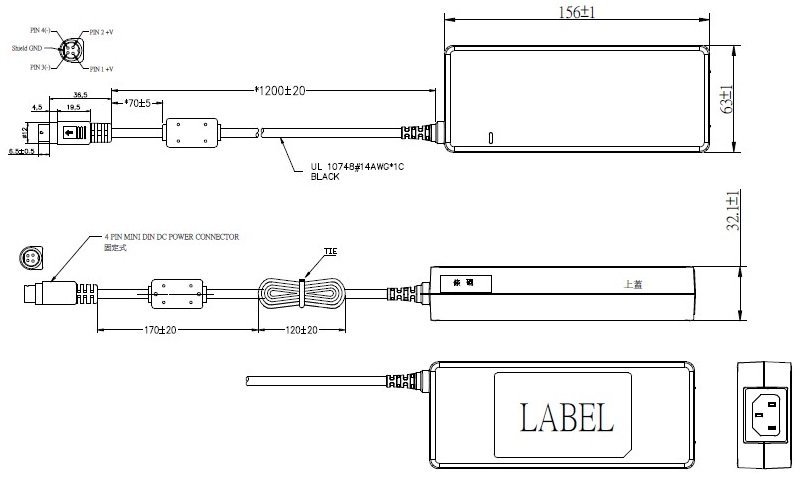

Body Dimension: 156mm x 63mm x 32.1mm  (+/- 1mm tolerance)

Accessories required:  IEC C13 power cord (sold separately, Click here to see the price)

Approval Agency: UKCA, CCC, CE, UL, FCC, EAC etc.

Please email sales@hunterfield.co.uk for any questions.
